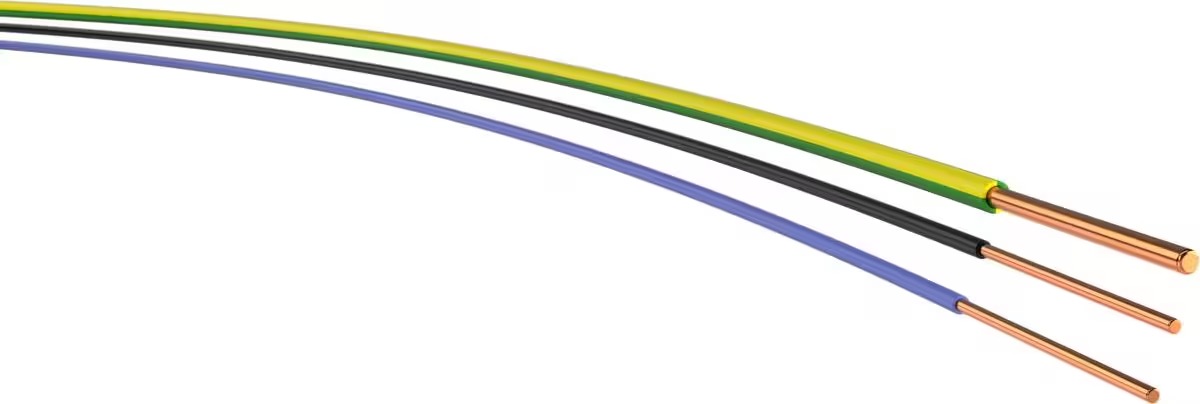

PVC core cable H07V-U 1.5
$44.99 Ursprünglicher Preis war: $44.99$24.99Aktueller Preis ist: $24.99.
Verfügbarkeit: 99 vorrätig
- Free shipping from 126 €excl. taxes
- Business customer? Purchase on account
- Easy return within 14 days
According to VDE 0281. In dry rooms, in devices, switchgear, and distribution boards, in surface-mounted and concealed pipes, and in closed installation ducts. For protected installation in and on luminaires. In and on electronic equipment in high-voltage systems for the purpose of measuring, controlling, and regulating. Not permitted for direct concealed installation. Max. operating temperature: 70 °C.
Technical data
Nominal conductor cross-section: 1.5 mm²
Conductor class: Class 1 = single-wire
Conductor material: copper
Material of the core insulation: Polyvinyl chloride (PVC)
Wire color: orange
Outer diameter approx.: 2.8 mm
Processing temperature: 5 to 70 °C
Nominal voltage U: 750 V
Nominal voltage U0: 450 V
Low smoke according to IEC 61034-2: no
Fire reaction class according to EN 13501-6: Eca
Oil-resistant according to EN 60811-404: no
Cold-resistant according to EN 60811-504+505+506: no
